OXITRUST sensors LIST

#Part NumberTypeMaterial TypeCompatibilitySensor ShapeAge Group
Dimensions (mm)
Cable Length (cm)
1OX10P001SensorNonwovenNellcorButterflyAdult100x45
90
2OX10P002SensorNonwovenNellcorButterflyPediatric77x40
90
3OX10P003SensorMicrofoamNellcorButterflyAdult100x45
90
4OX10P004SensorMicrofoamNellcorButterflyPediatric77x40
90
5OX10P005SensorNonwovenNellcorL-ShapedInfant60x17
90
6OX10P006SensorNonwovenNellcorL-ShapedAdult/Neonate115x17
90
7OX10P007SensorMicrofoamNellcorL-ShapedInfant60x17
90
8OX10P008SensorMicrofoamNellcorL-ShapedAdult/Neonate115x17
90
9OX10P009SensorNonwovenMASIMOButterflyAdult100x45
90
10OX10P010SensorNonwovenMASIMOButterflyPediatric77x40
90
11OX10P011SensorMicrofoamMASIMOButterflyAdult100x45
90
12OX10P012SensorMicrofoamMASIMOButterflyPediatric77x40
90
13OX10P013SensorNonwovenMASIMOL-ShapedInfant60x17
90
14OX10P014SensorNonwovenMASIMOL-ShapedAdult/Neonate115x17
90
15OX10P015SensorMicrofoamMASIMOL-ShapedInfant60x17
90
16OX10P016SensorMicrofoamMASIMOL-ShapedAdult/Neonate115x17
90
17OX10P025SensorNonwovenPhilipsButterflyAdult100x45
90
18OX10P026SensorNonwovenPhilipsButterflyPediatric77x40
90
19OX10P027SensorMicrofoamPhilipsButterflyAdult100x45
90
20OX10P028SensorMicrofoamPhilipsButterflyPediatric77x40
90
21OX10P029SensorNonwovenPhilipsL-ShapedInfant60x17
90
22OX10P030SensorNonwovenPhilipsL-ShapedAdult/Neonate115x17
90
23OX10P031SensorMicrofoamPhilipsL-ShapedInfant60x17
90
24OX10P032SensorMicrofoamPhilipsL-ShapedAdult/Neonate115x17
90
25OX10P023Adaptor cableN/AN ↔ PN/AN/AN/A
300
26OX10P024Adaptor cableN/AM ↔ PN/AN/AN/A
300
27OX10P021Adaptor cableN/AM ↔ GN/AN/AN/A
300
28OX10P021Adaptor cableN/AN ↔ GN/AN/AN/A
300
29OX10P019Adaptor CableN/AN ↔ NN/AN/AN/A
300
30OX10P020N/AN/AM ↔ MN/AN/AN/A
300

Notes on cables compatability usage:

N → Nellcor, M → Masimo, P → Philips, G → GE.

For example:

N ↔ P,   means adaptor cable for  OXITRUST Nellcor comatible sensor to Philips Monitor (Modules)

M ↔ M, means adaptor cable for  OXITRUST Masimo combatibe sensor to MASIMO monitor

Sensors' Shapes and Dimensions

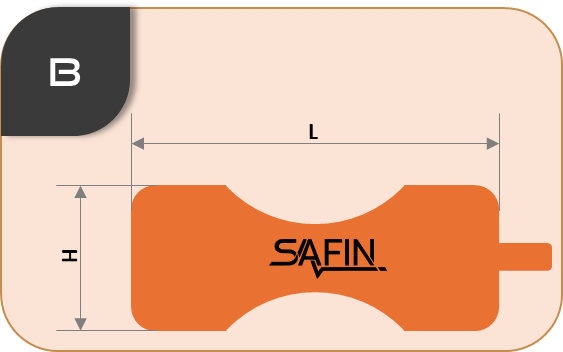

Butterfly

Designed for patient comfort and optimal outcomes, Butterfly sensors are suitable for both adult and pediatric applications. Additionally, the sensor comes in a variety of materials (as shown below) to accommodate individual patient needs.

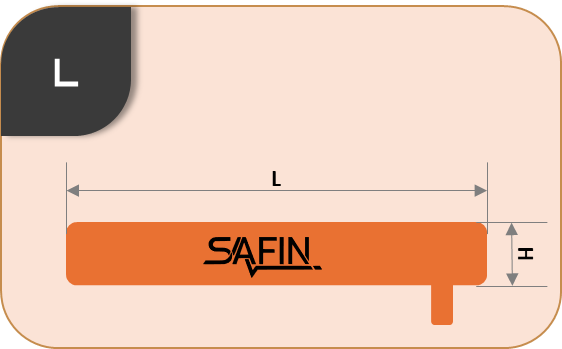

L-Shaped

L-shaped sensors are designed for use across a wide range of patients, including adults, infants, and neonates. The sensors are available in various materials to accommodate specific patient needs.

Materials Selection

Foam

Made from a biocompatible thin  foam sheet known for its breathability and fluid resistance, this sensor patch offers exceptional comfort. The soft material adheres securely to the skin with gentle adhesive that removes easily without leaving residue.

Nonwoven

Fabricated from a biocompatible nonwoven material, this sensor patch offers exceptional comfort and breathability. Nonwoven fabrics are inherently lightweight and flexible, conforming comfortably to the contours of the body. The breathable structure allows for moisture vapor transmission, minimizing irritation and promoting skin health. The gentle adhesive adheres securely to the skin for reliable sensor attachment yet removes easily without leaving residue.

Spandex Composite

Composed of a comfortable blend of breathable cotton and flexible spandex, this sensor patch offers a balance of comfort and gentle movement. The cotton content promotes moisture wicking and reduces irritation, while the spandex provides a touch of stretch for a more conforming fit. The secure, gentle adhesive ensures reliable sensor attachment while removing easily without leaving residue.

Cotton

Crafted from a soft, breathable cotton fabric, this sensor patch offers exceptional comfort and gentle contact with the skin. Cotton's natural fibers are inherently hypoallergenic and promote moisture wicking, helping to keep the application area dry and comfortable. The secure, gentle adhesive ensures reliable sensor attachment while removing easily without leaving residue

Using Safin's Sensors

Seamless and simple

Safin offers a user-friendly integration process for its patient monitors.  Just choose the appropriate reusable cable with a connector that matches your specific monitor on one end.  The other end seamlessly connects to Safin's designed sensor, ensuring compatibility. This eliminates any complex setup steps and allows you to swiftly connect the sensor to your patient monitor.
